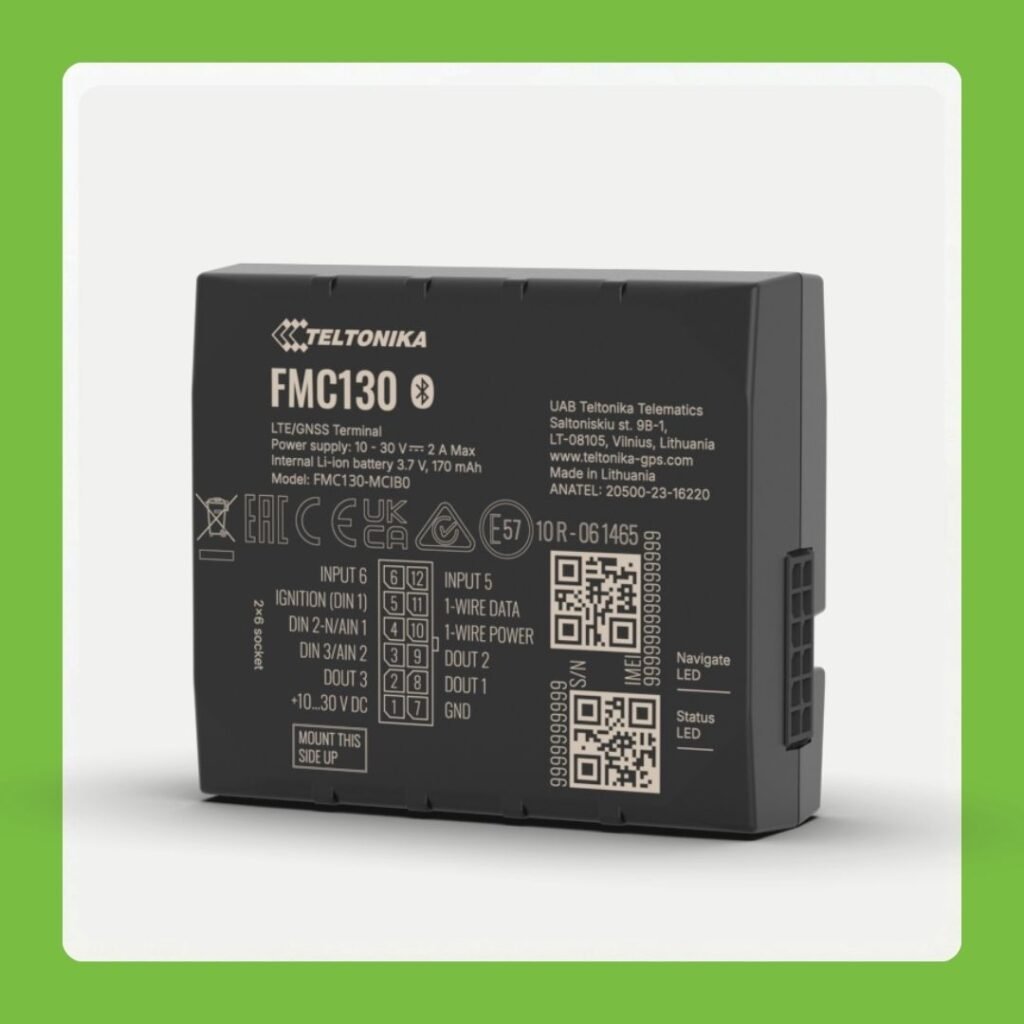

Teltonika FMC130 is a professional telematics and GPS tracking solution designed for modern fleet management, cargo monitoring, security tracking, and vehicle telemetry applications. Future-proof 4G LTE Cat 1 tracker featuring programmable inputs (Digital/Analog/Negative) and impulse frequency reading for high-accuracy fuel monitoring. This device is suitable for logistics companies, transport operators, fleet managers, and security-focused vehicle tracking deployments.
| Network | 4G LTE Cat 1 with 3G (UMTS) and 2G (GSM) fallback (Bands: B1 / B3 / B7 / B8 / B20 / B28A) |
|---|---|
| Bluetooth | Bluetooth 4.0 + LE (supports EYE Sensors, EYE Beacons, wireless temperature/humidity sensors, and hands-free communication) |
| GNSS | 33-channel high-sensitivity receiver (GPS, GLONASS, Galileo, Beidou, QZSS, AGPS) |
| Antennas | Internal high-gain GNSS and LTE antennas (no external wiring required) |
| Digital Inputs | 3 × inputs (Input 1 dedicated to ignition, remaining inputs configurable) |
|---|---|
| Digital Outputs | 3 × open drain outputs for immobilization, door locks, buzzers, and auxiliary controls |
| Analog Inputs | 2 × (0–30V) inputs for fuel sensors and external battery monitoring |
| Negative Input | Direct connection for door pins, seatbelt sensors, and other ground-trigger devices |
| Impulse Input | Supported on digital inputs for high-precision fuel flow meter integration |
| 1-Wire Interface | Supports iButton Driver ID and up to 6 Dallas temperature sensors |
| Memory | 128MB internal flash memory for offline data storage during network outages |
| CAN Bus Support | Compatible with CAN adapters for fuel data, odometer readings, engine parameters, and DTC diagnostics |
|---|---|
| Eco-Driving | Real-time monitoring of harsh acceleration, braking, and cornering behavior |
| Advanced Anti-Theft | Jamming detection, unplug detection, and towing alarm protection |
| Driver ID & Immobilization | Restricts unauthorized engine starts using iButton or RFID authentication |
| Fuel Monitoring | Supports liquid level sensors (LLS), CAN-based fuel readings, and impulse fuel flow meters |
| Dimensions | 65 × 56.6 × 20.6 mm (55g) |
|---|---|
| Operating Voltage | 10V to 30V DC with overvoltage protection |
| Backup Battery | 170mAh internal Li-Ion battery |
| IP Rating | IP41 (designed for professional dashboard and cabin installations) |
