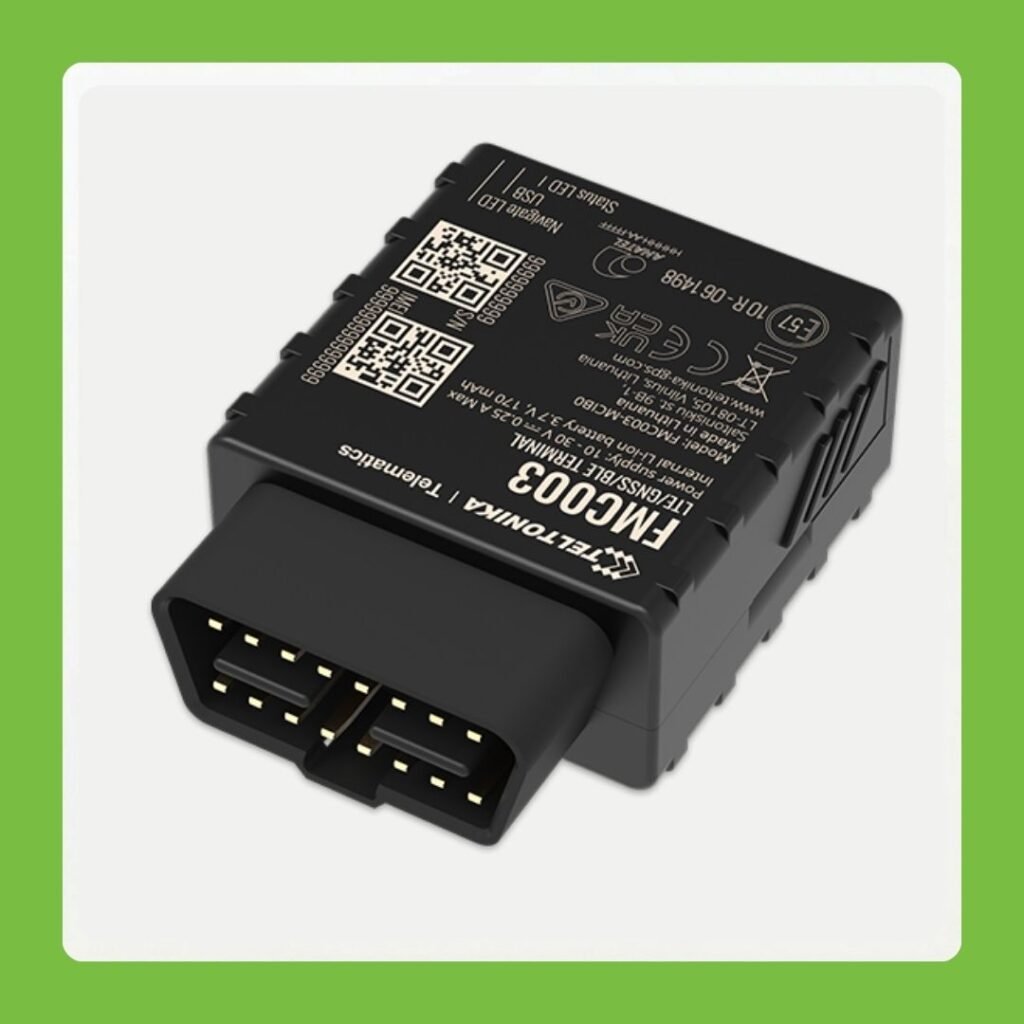

Teltonika FMC003 is a professional telematics and GPS tracking solution designed for modern fleet management, cargo monitoring, security tracking, and vehicle telemetry applications. Future-proof 4G LTE Cat 1 OBDII tracker with 2G fallback and advanced OEM PID reading for high-accuracy diagnostic telemetry. This device is suitable for logistics companies, transport operators, fleet managers, and security-focused vehicle tracking deployments.
| Network | 4G LTE Cat 1 with 2G (GSM) fallback (Bands: B1, B3, B7, B8, B20, B28) |
|---|---|
| Bluetooth | Bluetooth 4.0 + LE (supports EYE Sensors, EYE Beacons, and wireless peripherals) |
| GNSS | 33-channel high-sensitivity receiver (GPS, GLONASS, Galileo, Beidou, QZSS, AGPS) |
| Antennas | Integrated high-gain GNSS and LTE antennas (internal design) |
| OBDII Connector | Ultra-slim, low-profile OBDII plug designed for discreet in-vehicle installation |
|---|---|
| OEM Data Reading | Supports HS CAN, MS CAN, SW CAN, and K-Line for deep manufacturer-level vehicle data extraction (true odometer, fuel level, EV SoC, battery health, charging status) |
| Memory | 128MB internal flash memory for offline data storage during network interruptions |
| USB Port | Micro-USB interface for configuration and device setup |
| EV Monitoring | Optimized tracking of electric vehicle battery health, state of charge, and charging cycles |
|---|---|
| Green Driving | Monitoring of harsh acceleration, braking, and cornering for driver behavior analysis |
| Anti-Theft Suite | Jamming detection, unplug alerts, and towing alarm with real-time notifications |
| Crash Detection | High-frequency 3-axis accelerometer for impact detection and accident reconstruction |
| Auto-Geofencing | Automated boundary alerts for unauthorized movement when parked |
| Dimensions | 52.6 × 29.1 × 26 mm (33g lightweight compact design) |
|---|---|
| Operating Voltage | 10V to 30V DC suitable for passenger and light commercial vehicles |
| Backup Battery | 45mAh Li-Ion battery (0.167Wh) for emergency power-loss alerts |
| IP Rating | IP41 (in-cabin installation only) |
