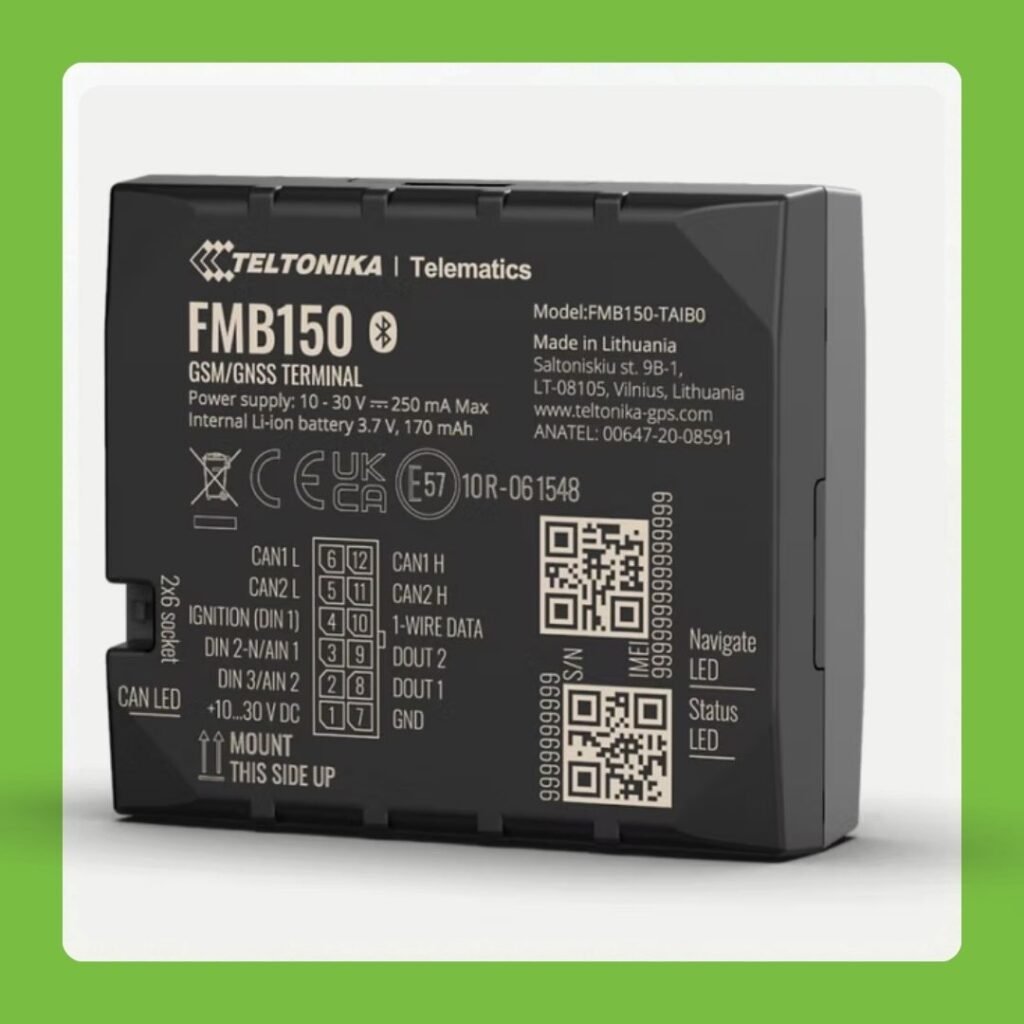

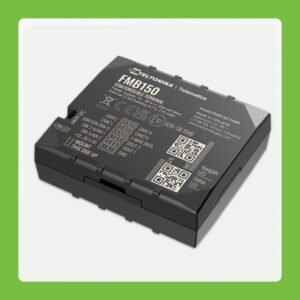

Teltonika FMB150 is a professional telematics and GPS tracking solution designed for modern fleet management, cargo monitoring, security tracking, and vehicle telemetry applications. Specialized 2G tracker designed for advanced CAN data reading and remote control of vehicle systems This device is suitable for logistics companies, transport operators, fleet managers, and security-focused vehicle tracking deployments.
| Network | Quad-band 2G GSM (850 / 900 / 1800 / 1900 MHz) |
|---|---|
| Bluetooth | Bluetooth 4.0 + LE (supports EYE Sensors, EYE Beacons, wireless temperature/humidity sensors, and hands-free communication) |
| GNSS | 33-channel high-sensitivity receiver (GPS, GLONASS, Galileo, Beidou, SBAS, QZSS, DGPS, AGPS) |
| Antennas | Internal high-gain GNSS and GSM antennas (no external wiring required) |
| CAN Support (EV & ICE) | Built-in CAN processor optimized for EV and ICE platforms; reads battery level, state of charge (SoC), charging status, fuel data, and engine parameters |
|---|---|
| Digital Inputs | 3 × inputs (Input 1 dedicated to ignition; remaining inputs configurable) |
| Digital Outputs | 2 × open drain outputs for immobilization, buzzers, or external relay control |
| Analog Inputs | 2 × (0–30V) inputs for auxiliary sensors and voltage monitoring |
| Negative Input | Software-configurable ground-trigger input for door and seatbelt sensors |
| 1-Wire Interface | Supports iButton Driver ID and up to 4 Dallas temperature sensors |
| Memory | 128MB internal flash memory for offline data storage during network loss |
| EV-Specific Data | Real-time monitoring of battery level (%), state of charge, distance to empty, and charging status |
|---|---|
| ICE Data | Fuel level, odometer, engine RPM, engine temperature, and door status monitoring |
| Eco-Driving | Real-time analysis of harsh acceleration, braking, and cornering for safety and efficiency optimization |
| Anti-Theft Suite | Jamming detection, unplug detection, and towing alarm protection |
| Crash Detection | Integrated 3-axis accelerometer for detailed accident reconstruction and impact analysis |
| Dimensions | 65 × 56.6 × 20.6 mm (55g) |
|---|---|
| Operating Voltage | 10V to 30V DC with overvoltage and reverse polarity protection |
| Backup Battery | 170mAh internal Li-Ion battery ensuring alerts during power interruption |
| IP Rating | IP41 (designed for professional in-cabin and dashboard installations) |
