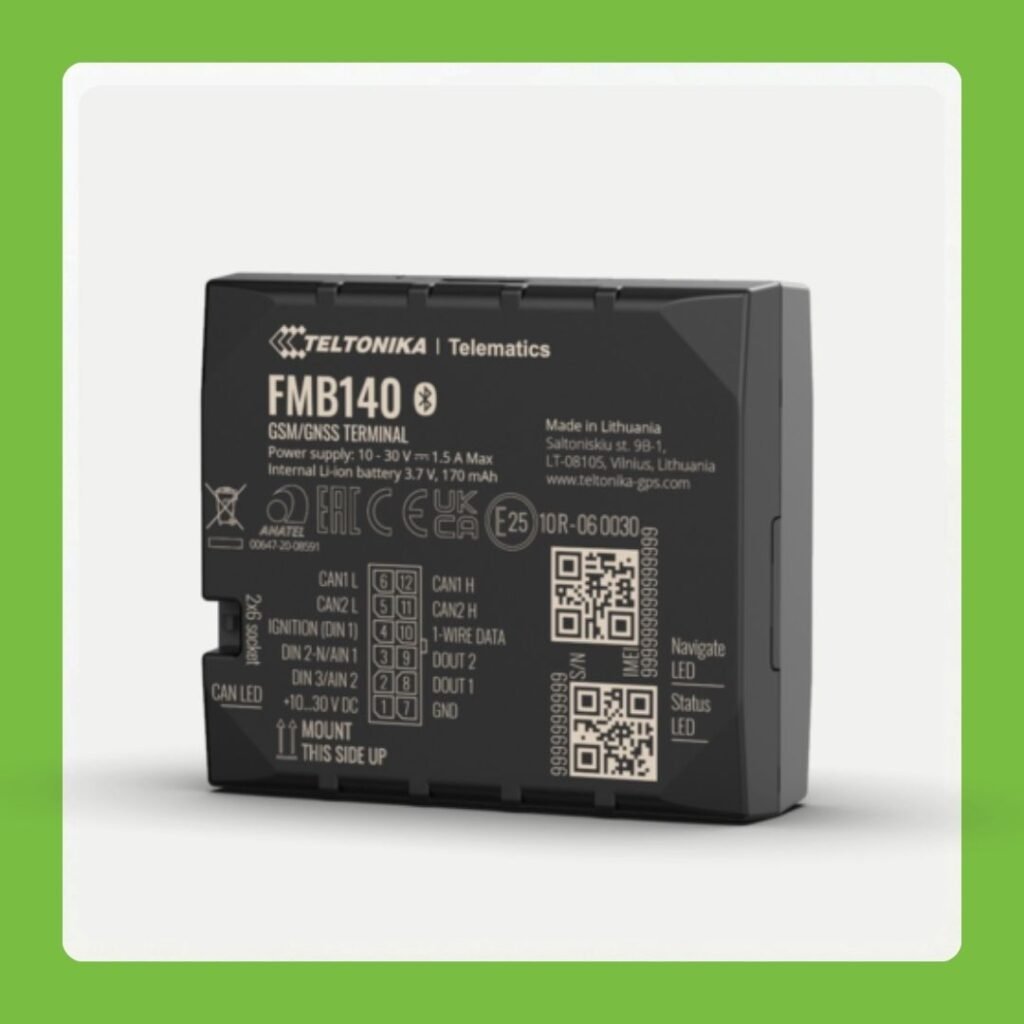

Teltonika FMB140 is a professional telematics and GPS tracking solution designed for modern fleet management, cargo monitoring, security tracking, and vehicle telemetry applications. 2G tracker with integrated CAN processor for reading OEM fuel, odometer, and engine data. This device is suitable for logistics companies, transport operators, fleet managers, and security-focused vehicle tracking deployments.
| Network | Quad-band 2G GSM (850 / 900 / 1800 / 1900 MHz) |
|---|---|
| Bluetooth | Bluetooth 4.0 + LE (supports EYE Sensors, EYE Beacons, wireless temperature/humidity sensors, and hands-free communication) |
| GNSS | 33-channel high-sensitivity receiver (GPS, GLONASS, Galileo, Beidou, SBAS, QZSS, DGPS, AGPS) |
| Antennas | Internal high-gain GNSS and GSM antennas with no external wiring required |
| CAN Data Support | Integrated CAN processor with support for over 2,500 vehicle models, enabling direct CAN bus data acquisition without external CAN adapters |
|---|---|
| Digital Inputs | 3 × inputs (Input 1 dedicated to ignition; remaining inputs configurable) |
| Digital Outputs | 2 × open drain outputs for immobilization, buzzers, and LED indicators |
| Analog Inputs | 2 × (0–30V) inputs for auxiliary sensors and external battery monitoring |
| Negative Input | 1 × ground-trigger input for seatbelt sensors, door switches, and similar applications |
| 1-Wire Interface | Supports iButton Driver ID and wired temperature sensors |
| Memory | 128MB internal flash memory for offline data storage during network outages |
| Native CAN Bus Reading | Direct access to fuel level, fuel consumption, odometer, engine temperature, engine RPM, and door status data |
|---|---|
| Eco-Driving | Real-time monitoring of harsh acceleration, braking, and cornering for driver behavior scoring |
| Driver ID & Immobilization | Secure vehicle access using iButton or RFID authentication through the 1-Wire interface |
| Anti-Theft | Jamming detection, unplug detection, and towing alarm protection |
| Crash Detection | Integrated 3-axis accelerometer for accident detection and reconstruction analysis |
| Dimensions | 65 × 56.6 × 20.6 mm (55g) |
|---|---|
| Operating Voltage | 10V to 30V DC with overvoltage and reverse polarity protection |
| Backup Battery | 170mAh internal Li-Ion battery |
| IP Rating | IP41 (designed for professional in-cabin and protected dashboard installations) |
