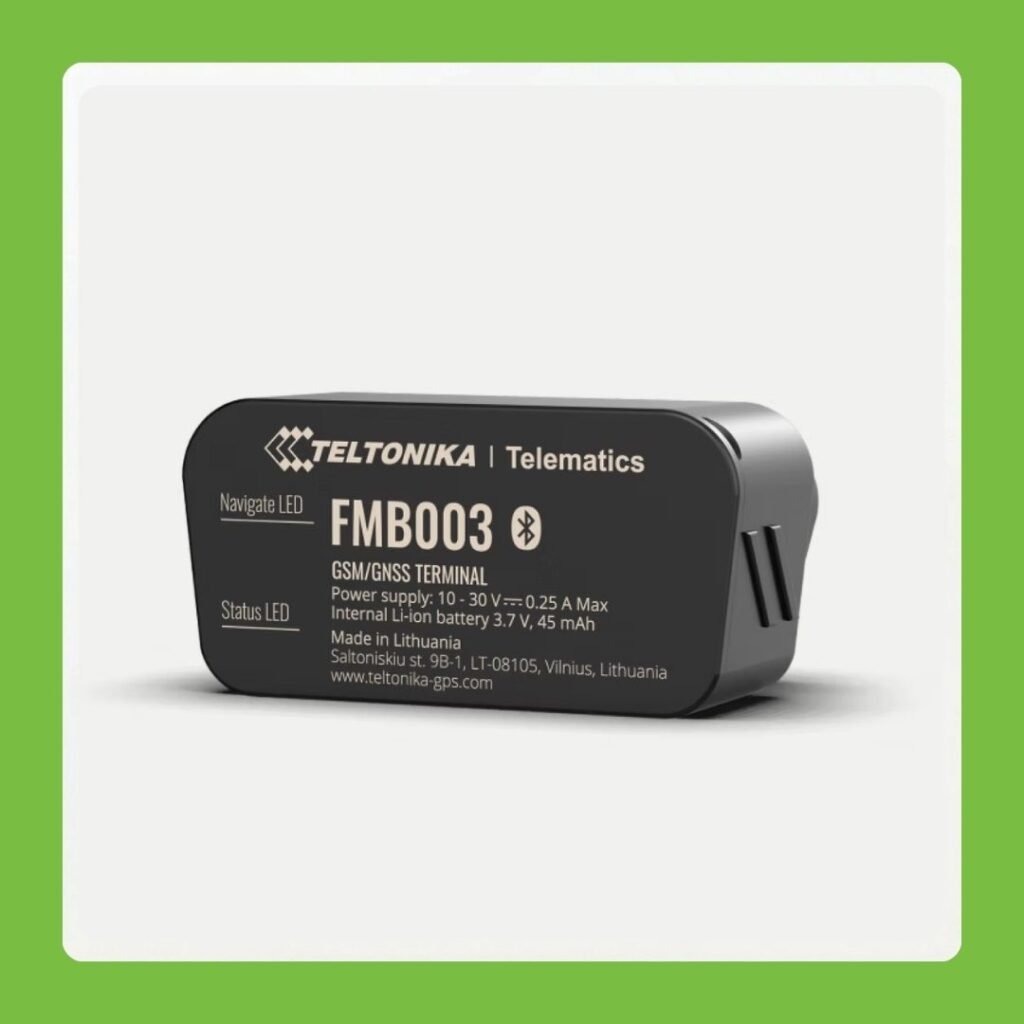

Teltonika FMB003 is a professional telematics and GPS tracking solution designed for modern fleet management, cargo monitoring, security tracking, and vehicle telemetry applications. Ultra-small 2G OBDII tracker featuring OEM parameter reading (Real Fuel/Odometer) and BLE 4.0 for wireless sensor expansion. This device is suitable for logistics companies, transport operators, fleet managers, and security-focused vehicle tracking deployments.
| Network | Quad-band 2G GSM (850 / 900 / 1800 / 1900 MHz) |
|---|---|
| Bluetooth | Bluetooth 4.0 + LE (supports wireless headsets, temperature/humidity sensors, and barcode scanners) |
| GNSS | 33-channel high-sensitivity receiver (GPS, GLONASS, Galileo, Beidou, SBAS, QZSS, DGPS, AGPS) |
| Antennas | Integrated high-gain GNSS and GSM antennas optimized for under-dash installation |
| OBDII Connector | Direct plug-in OBDII interface providing power and vehicle diagnostics access |
|---|---|
| OBD Data Reading | Up to 32 parameters including fuel level, fuel consumption, engine RPM, engine temperature, odometer, vehicle speed, VIN, and DTC codes |
| Digital Input | 1 × input reserved for ignition status monitoring |
| Memory | 128MB internal flash memory for offline data storage during network loss |
| USB Port | Micro-USB interface for configuration, diagnostics, and firmware debugging |
| Plug and Track | Instant installation via OBDII port with no wiring modifications, preserving vehicle warranty |
|---|---|
| Green Driving | Real-time monitoring of harsh acceleration, braking, and cornering for driver behavior analysis |
| Crash Detection | Integrated 3-axis accelerometer detects collisions and triggers emergency alerts |
| Anti-Theft Suite | Jamming detection, unplug detection alerts, and towing alarm functionality |
| Auto-Geofence | Automatic safe-zone creation for enhanced parking and asset security |
| Dimensions | 50.7 × 49.6 × 25 mm (63g) |
|---|---|
| Operating Voltage | 10V to 30V DC compatible with light and selected heavy vehicles via OBDII power supply |
| Backup Battery | 170mAh internal Li-Ion battery enabling unplug alerts and short-term tracking |
| IP Rating | IP41 (designed for protected in-cabin OBD installation) |
