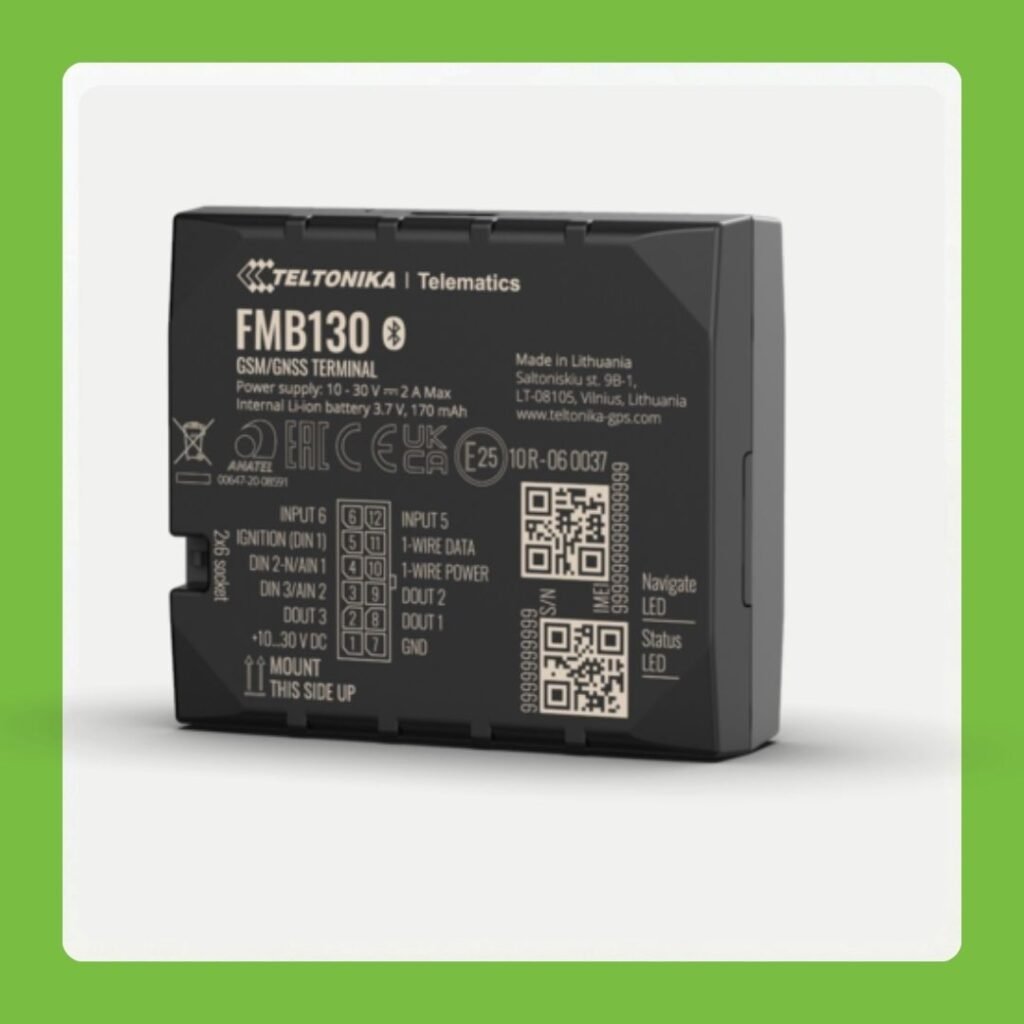

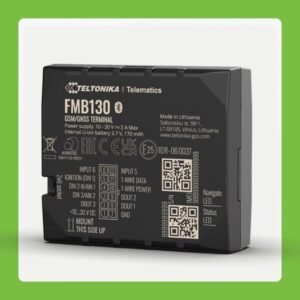

Teltonika FMB130 is a professional telematics and GPS tracking solution designed for modern fleet management, cargo monitoring, security tracking, and vehicle telemetry applications. Versatile 2G tracker with flexible I/O, negative input for easy accessory connection, and 1-Wire interface for advanced telemetry. This device is suitable for logistics companies, transport operators, fleet managers, and security-focused vehicle tracking deployments.
| Network | Quad-band 2G GSM (850 / 900 / 1800 / 1900 MHz) |
|---|---|
| Bluetooth | Bluetooth 4.0 + LE (supports EYE Sensors, EYE Beacons, wireless temperature/humidity sensors, and hands-free communication) |
| GNSS | 33-channel high-sensitivity receiver (GPS, GLONASS, Galileo, Beidou, SBAS, QZSS, DGPS, AGPS) |
| Antennas | Internal high-gain GNSS and GSM antennas |
| Digital Inputs | 3 × inputs (Input 1 dedicated to ignition; remaining inputs configurable) |
|---|---|
| Digital Outputs | 2 × open drain outputs for immobilization, buzzers, or LED indicators |
| Analog Inputs | 2 × (0–30V) inputs for fuel sensors or battery voltage monitoring |
| Flexible Input | 1 × configurable input that can operate as digital or analog |
| Negative Input | 1 × negative trigger input for seatbelt sensors, doors, or ground-switch devices |
| 1-Wire Interface | Supports iButton Driver ID and up to 4 Dallas temperature sensors |
| Memory | 128MB internal flash memory for offline data storage during network outages |
| CAN Bus Support | Compatible with CAN adapters for fuel level, odometer, engine parameters, and vehicle diagnostics |
|---|---|
| Eco-Driving | Harsh acceleration, braking, and cornering detection for driver performance monitoring |
| Driver ID | Supports iButton or RFID authentication to restrict vehicle access to authorized operators |
| Fuel Monitoring | Supports liquid level sensors (LLS), CAN bus fuel data, and analog fuel probes |
| Anti-Theft | Jamming detection, unplug detection, and towing alarm protection |
| Dimensions | 65 × 56.6 × 20.6 mm (55g) |
|---|---|
| Operating Voltage | 10V to 30V DC with overvoltage protection |
| Backup Battery | 170mAh internal Li-Ion battery |
| IP Rating | IP41 (recommended for indoor or dashboard installations) |
