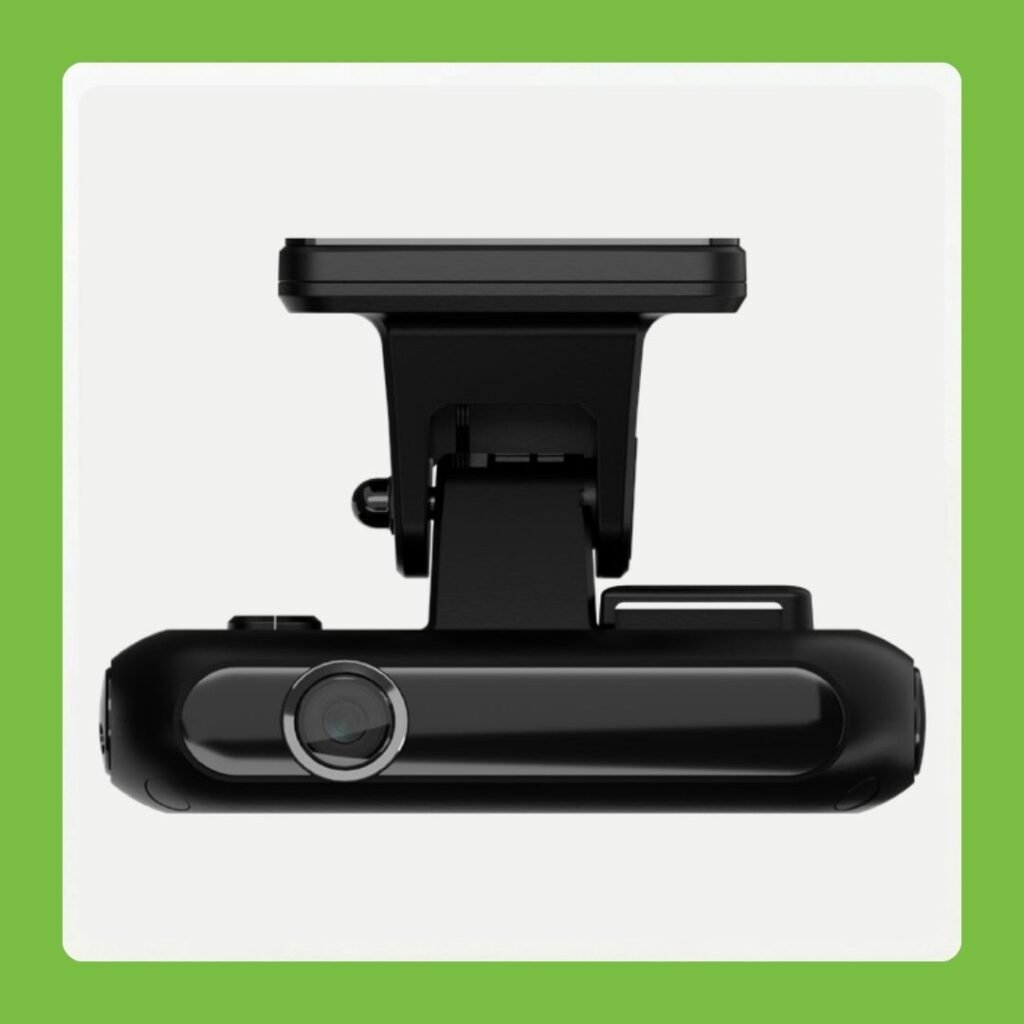

Queclink CV200XEU/XNA is a professional telematics and GPS tracking solution designed for modern fleet management, cargo monitoring, security tracking, and vehicle telemetry applications. Advanced 4G LTE Cat 6 dashcam with optional AI (ADAS/DMS), FHD front camera, and a detachable secondary camera for flexible cabin or side-view monitoring; features RS232 and BLE 4.2 for full telematics expansion. This device is suitable for logistics companies, transport operators, fleet managers, and security-focused vehicle tracking deployments.
| Cellular | 4G LTE Cat 6 (up to 300Mbps download / 50Mbps upload) |
|---|---|
| XEU Bands | B1 / B2 / B3 / B4 / B5 / B7 / B8 / B20 / B28 / B38 / B39 / B40 / B41 |
| XNA Bands | B2 / B4 / B5 / B12 / B13 / B14 / B17 / B66 / B41 |
| Wi-Fi | Dual-band 2.4GHz / 5GHz (AP and Station modes) |
| Bluetooth | Bluetooth 4.2 + BLE support |
| GNSS | GPS / BDS / GLONASS / Galileo with <3.0m CEP accuracy |
| Image Sensor | 2 Megapixel Full HD (1920 × 1080P) RGB sensor |
|---|---|
| Lens | 140° wide-angle (DFOV) with 6G optics and IR cut filter |
| Video Format | MP4 encoding with H.265 compression efficiency |
| Audio | High-sensitivity microphone and built-in speaker |
| OSD Overlay | Date, time, speed, GPS coordinates, and G-sensor data |
| DMS (Driver Monitoring) | Detects drowsiness, yawning, distraction, smoking, and phone use |
|---|---|
| ADAS | FCW (Forward Collision Warning), HMW (Headway Monitoring), PCW (Pedestrian Collision Warning) |
| Video Intelligence | Video blind detection and video loss detection |
| Wired Ports | 1 × RS232, 1 × digital input (negative), 1 × digital output (open drain) |
|---|---|
| External Camera Port | 4-pin connector for DMS, cabin, or cargo camera |
| Data Port | USB Type-C for configuration and data export |
| Storage | MicroSD (UHS-I) support up to 256GB |
| Dimensions | 120 × 60 × 30 mm (220g) |
|---|---|
| Power | 8V to 32V DC wide-voltage input |
