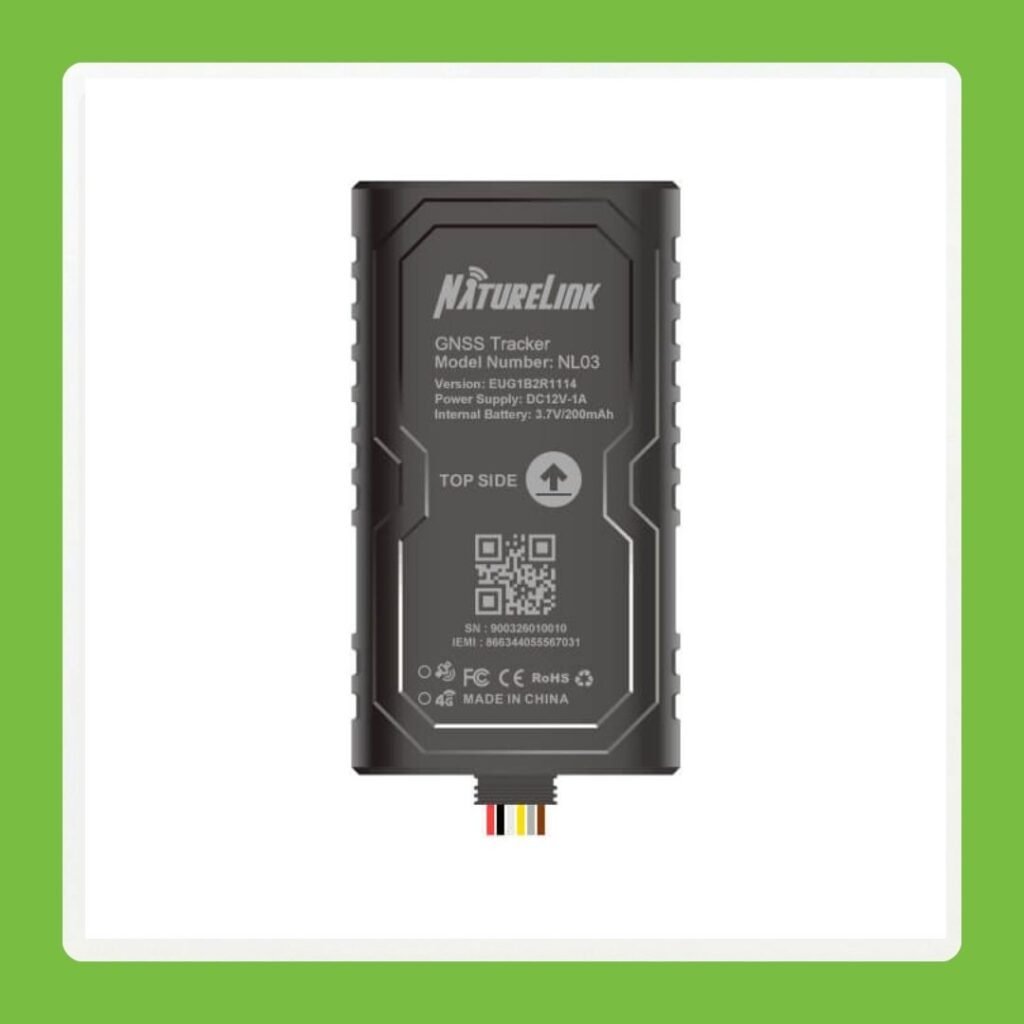

Naturelink NL03 is a professional telematics and GPS tracking solution designed for modern fleet management, cargo monitoring, security tracking, and vehicle telemetry applications. Compact IP67 waterproof 4G tracker optimized for motorcycles and light vehicles, featuring 9-90V wide voltage support, BLE 5.0, and rapid-install architecture. This device is suitable for logistics companies, transport operators, fleet managers, and security-focused vehicle tracking deployments.
| Network | 4G LTE Cat 1 with 2G (GSM) fallback — ensures global connectivity and long-term usability as legacy networks phase out |
|---|---|
| Bluetooth | BLE 5.0 supporting fuel sensors, temperature/humidity probes, and Bluetooth relay immobilization systems |
| GNSS | Multi-constellation positioning (GPS, GLONASS, BeiDou, QZSS) |
| Antennas | High-gain integrated GNSS and LTE antennas optimized for discreet and hidden installations |
| Digital Inputs | Supports ignition (ACC) detection input |
|---|---|
| Digital Outputs | Remote fuel/power cut-off via external relay for immobilization |
| Analog Inputs | Supports analog fuel probes and other external sensors |
| Voltage Range | DC 10V–90V — compatible with motorcycles, trucks, forklifts, and electric mobility systems (up to ~80V) |
| Memory | 64Mbit internal flash memory for offline data retention during network outages |
| Driving Behavior | Real-time detection of harsh acceleration, braking, and sharp cornering |
|---|---|
| Anti-Theft | Tamper alerts, vibration/movement detection, and ignition-off movement alarms |
| Geofencing | Supports up to 128 configurable geofences for secure parking zones and alerts |
| Power Modes | Smart Sleep and Deep Sleep modes to preserve motorcycle battery during long inactivity |
| Form Factor | Compact, slim design optimized for hidden motorcycle installation (under seat or fairings) |
|---|---|
| Ingress Protection | IP67 waterproof and dustproof — fully protected against immersion up to 1 meter for 30 minutes |
| Backup Battery | Internal 200–400mAh battery for emergency tracking if main power is disconnected |
