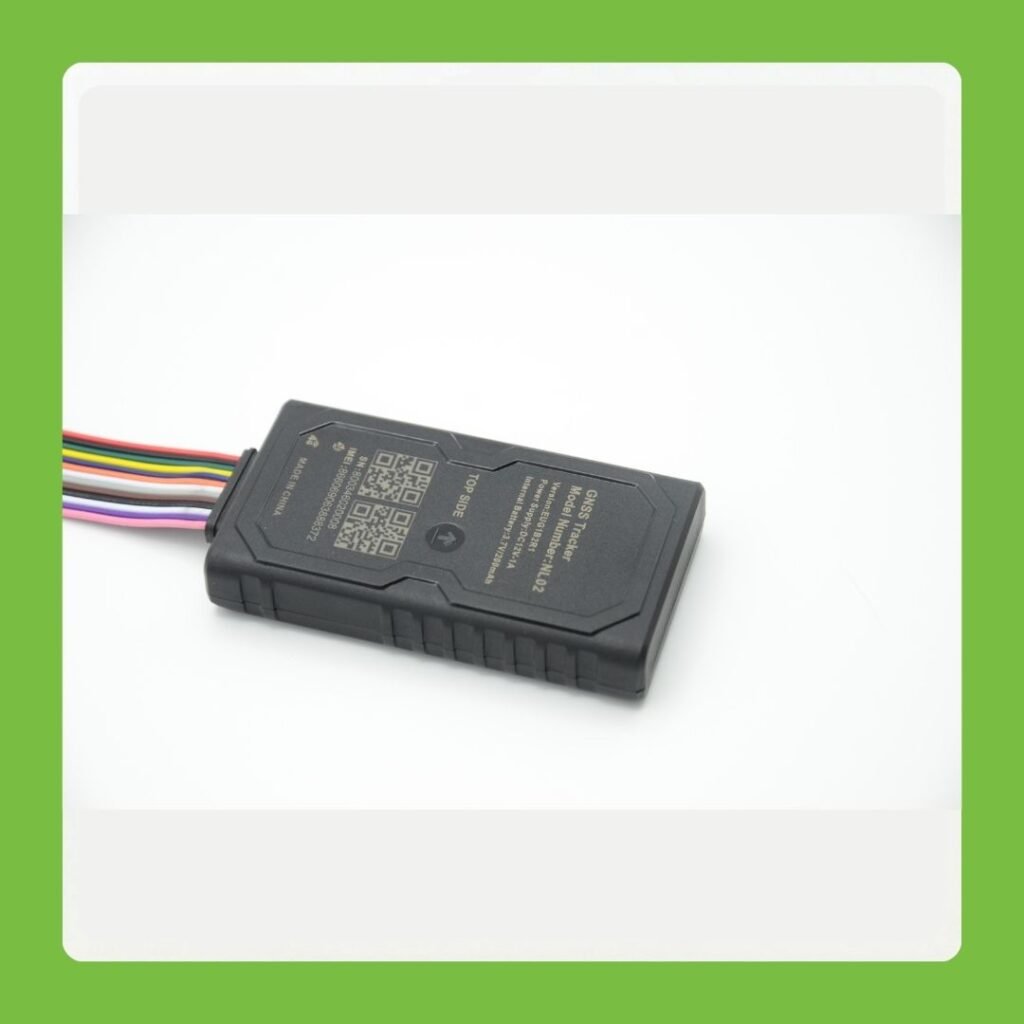

Naturelink NL02L is a professional telematics and GPS tracking solution designed for modern fleet management, cargo monitoring, security tracking, and vehicle telemetry applications. Cost-effective, IP67 waterproof 4G LTE Cat 1 tracker featuring BLE 5.0, 9-90V wide voltage support, and driving behavior monitoring for harsh environments. This device is suitable for logistics companies, transport operators, fleet managers, and security-focused vehicle tracking deployments.
| Network | 4G LTE Cat 1 with 2G fallback (EU, Latin America, and Global LTE Cat M1 IoT variants) |
|---|---|
| GNSS | Multi-constellation GPS, GLONASS, BeiDou, QZSS with high-sensitivity receiver (-162 dBm tracking) |
| Antennas | Internal high-gain GNSS and LTE antennas (no external wiring required) |
| Bluetooth | BLE 5.0 for wireless fuel sensors, temperature/humidity probes, and beacon integration |
| Digital Inputs | 6 x configurable inputs (0–30V) for ignition, doors, alarms, and auxiliary sensors |
|---|---|
| Digital Outputs | 2 x open collector outputs (500mA) for fuel cut-off, buzzers, or LED indicators |
| Analog Inputs | 4 x configurable analog inputs (0–30V) for multiple fuel or sensor integrations |
| 1-Wire | Supports iButton driver ID and temperature sensor integration |
| Serial Port | RS232 interface for RFID readers and industrial sensor expansion |
| Memory | 64Mbit internal flash memory for offline data storage during network loss |
| Driving Behavior | Real-time detection of harsh acceleration, braking, cornering, overspeeding, and crash events |
|---|---|
| Advanced Alarms | Alerts for power loss, fuel theft, low fuel, and rollover detection for heavy equipment safety |
| Geofencing | Supports up to 128 circular and polygon geofences with configurable alerts |
| Sleep Modes | Smart Sleep and Deep Sleep modes to preserve vehicle battery during inactivity |
| Dimensions | 80 × 44 × 14 mm (70g, slim and easy to conceal) |
|---|---|
| IP Rating | IP67 waterproof and dustproof for exposed installation on motorcycles and machinery |
| Operating Voltage | 10V to 90V DC (compatible with cars, trucks, EVs, and scooters) |
| Backup Battery | 200 mAh Li-Ion battery for emergency tracking during power disconnection |
